äÁâ¤Ã⿹äÃéÊÒÂÊÓËÃѺäÇâÍÅÔ¹ ACEMIC ÃØè¹ RE-10/VT-5
ÂÕèËéÍ: ACEMIC ÃËÑÊ: ECVT5
äÁâ¤Ã⿹äÃéÊÒÂÊÓËÃѺäÇâÍÅÔ¹ ACEMIC ÃØè¹ RE-10/VT-5
SPECIFICATION
UHF 600-952MHz frequency range (region dependant)
Digital wireless audio transmission
48KHz audio sampling mode
Pre-set 16 selectable frequencies
Digital ID code, completely solves frequency interference
IR sync downloading the frequency from receiver
Lithium battery power supply
Portable plug-on receiver, plug in the mixer or active speaker directly
Up to 60m line-of-sight operating range

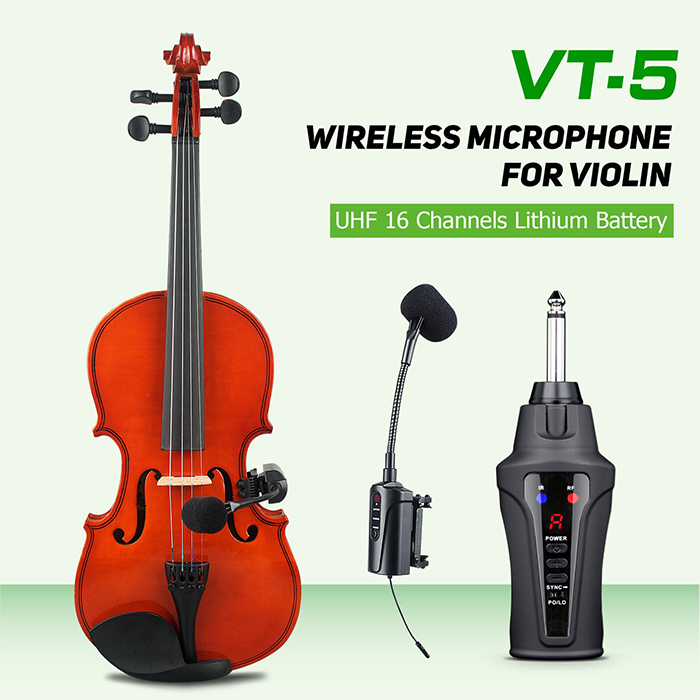

Suitable for violin stage performances, street performances, etc.

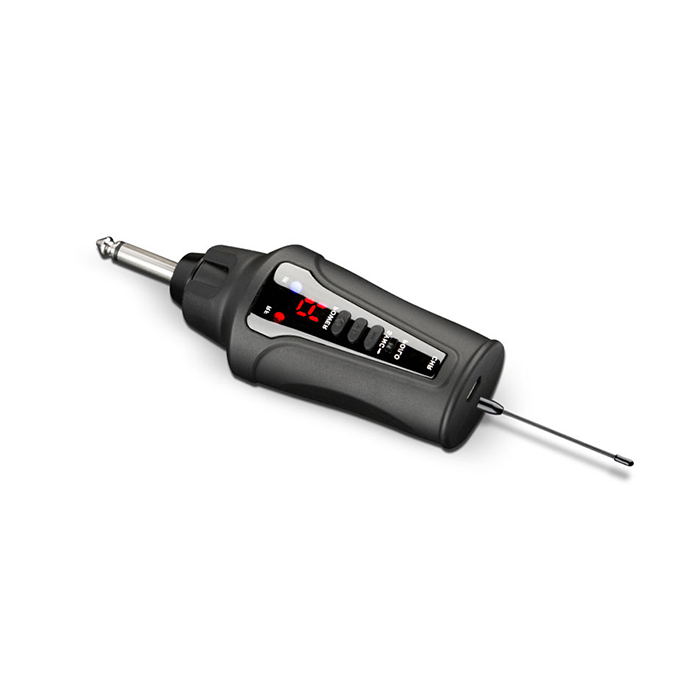

RECEIVER
Frequency range: 660-690MHz (region dependant)
Frequency: Pre-set 16 selectable channels
Modulation mode: pi/4 DQPSK
Latency: <6ms
Sampling: 48KHz
Frequency response: 60Hz - 15KHz +- 2dB
Total Harmonic Distortion: <0.8%(1KHz)
Signal/noise ratio: >92dB
Receiving sensitivity: -92dBm
Output: 6.35mm plug
Power supply: 3.7V Lithium battery
Power consumption: >6 hours continuosly using
Dimensions: 185*20*10mm

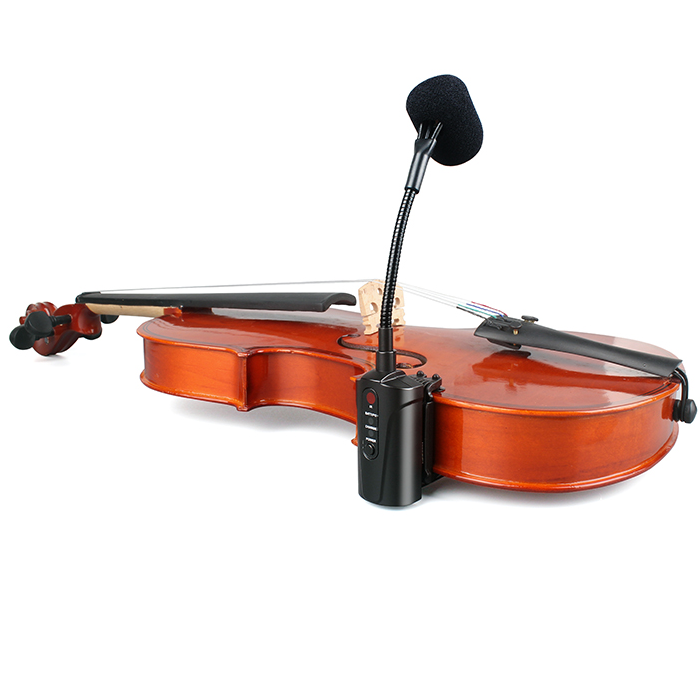

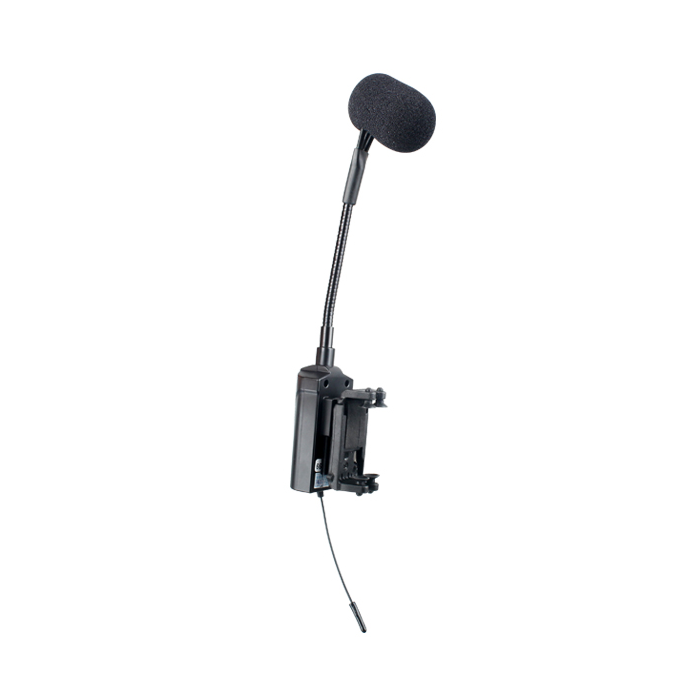

TRANSMITTER
Frequency range:660-690MHz (region dependent)
Modulation mode: pi/4 DQPSK
Transmitter power: 10mW
Sensitivity: -47 d+-2dB
Frequency change: IR synch
Microphone type: Condenser
Microphone dimension: ?14*5.0mm
Power supply: 3.7V lithium battery
Power consumption:>6 hours continuously using
Dimension: 125*40*20mm
|
