«Ô§à¡ÔéÅâ»Ãà«Êà«ÍÃì ´Ô¨ÔµÍÅ â»Ãà«Êà«ÍÃì dbx DriveRack VENU360 dbx
ÂÕèËéÍ: dbx ÃËÑÊ: DRIVE360
«Ô§à¡ÔéÅâ»Ãà«Êà«ÍÃì ´Ô¨ÔµÍÅ â»Ãà«Êà«ÍÃì dbx DriveRack VENU360 dbx
ALL THE PROCESSING NEEDED TO SUPERCHARGE YOUR SOUND SYSTEM. NOW WITH COMPLETE CONTROL FROM YOUR MOBILE DEVICE.
dbx took the dominant DriveRack? 260, improved its features, and added more. The result?

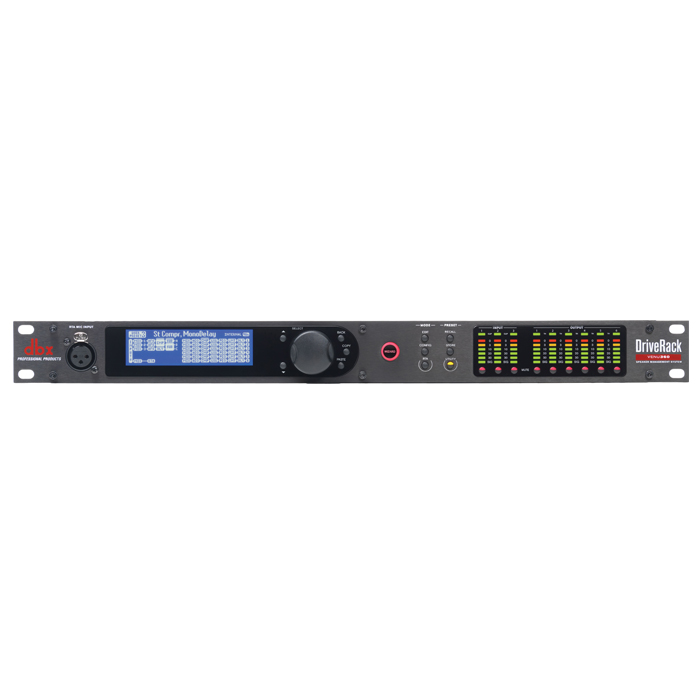

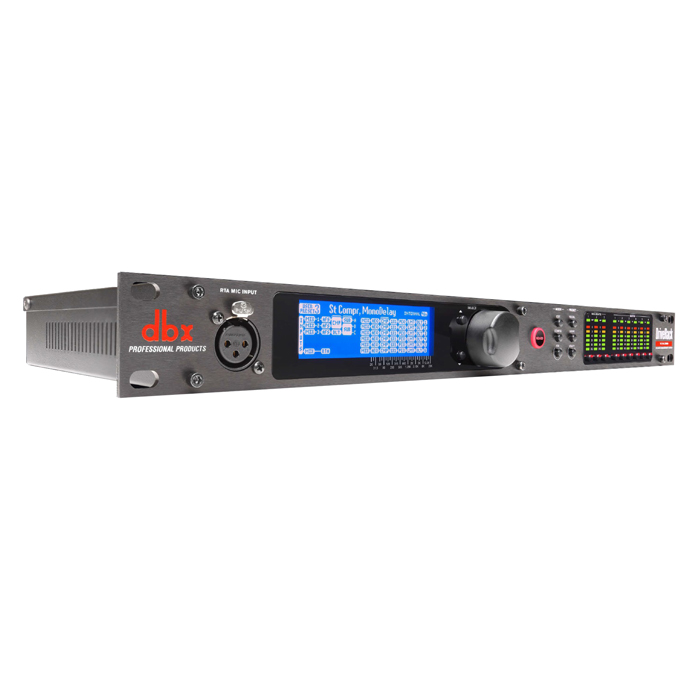

The 3 input, 6 output DriveRack VENU360.
The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ? and AFS? algorithms, additional input channels, ethernet control via an Android,? iOS,? Mac,? or Windows? device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
Features
INPUT PROCESSING
dbx Compression
AFS? (Advanced Feedback Suppression)
31-Band Graphic EQ
12-Band Parametric EQ (with narrow notch capabilities)
Subharmonic Synthesis
Backline Delay
Noise Gate
OUTPUT PROCESSING
Crossover (supports full range up to mono 6-way systems)
12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
dbx Compression
Automatic Gain Control
Subharmonic Synthesis
Noise Gate
Tower Delays (up to 1000ms per output)
8-Band Parametric EQs (used for speaker tunings)
dbx Limiting
Driver Alignment Delays
TESTED WIRELESS ROUTERS:
Dlink 636L
Dlink Cloud router 2000
Cisco / linksys: WRT54G2V1
Netgear WGR614 v7
Netgear WNR 1000
(Other routers are likely compatible. This list represents those which have been tested thus far.)
Specifications

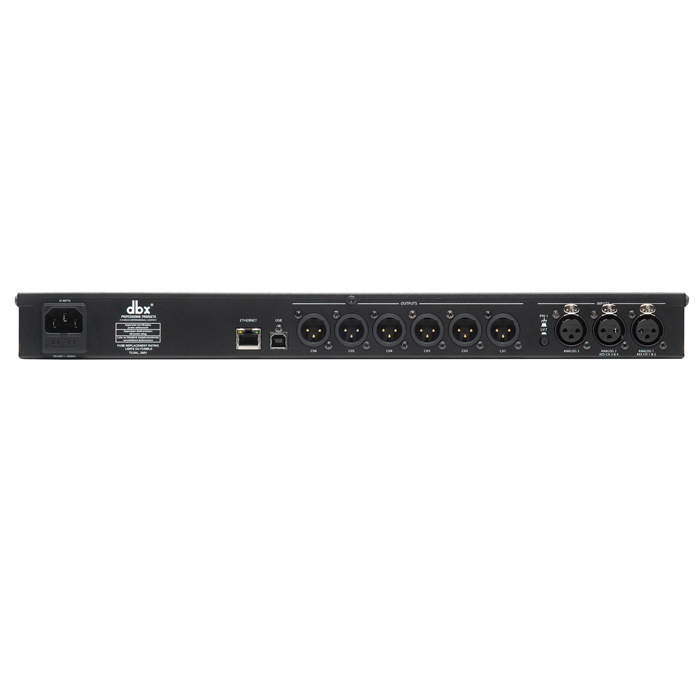

Input (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
Input Connectors (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Type Electronically balanced/RF filtered
Input Impedance > 30 k?, balanced line to line
Max Input Level (line inputs) > +28 dBu, balanced, ?1% THD
CMRR > 50 dB @ 1 kHz
RTA Mic Preamp Phantom Power +48 VDC
Output (6) Line Outputs
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 ?, balanced line to line
Max Output Level +22 dBu, balanced, ?1% THD
Alignment Delay Up to 1000 ms per output channel
A/D Converter 24-bit with dbx Type IV? Conversion System
A/D Dynamic Range 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Type IV Dynamic Range 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
D/A Converter 24-bit
D/A Dynamic Range 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
Internal Processing Wordlength 32-bit floating point
Supported Sample Rates 48/96 kHz (32-192 kHz using sample rate conversion)
System Performance Dynamic Range 114 dB A-weighted; 110 dB unweighted
THD+Noise 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response 20 Hz – 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured
Latency Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz)
Operating Voltage 100-240 VAC 50/60 Hz
Power Consumption 18 W
Unit Weight 5.48 lbs. (2.49 kg)
Shipping Weight 7.10 lbs. (3.22 kg)
Dimensions 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
|
|
