SR Technology µÙéÅÓ⾧ÊÓËÃѺËéͧºÑ¹·Ö¡àÊÕ§ ÃØè¹ STUDIO THREE
ÂÕèËéÍ: SR Technology ÃËÑÊ: SRS03
µÙéÅÓ⾧ÊÓËÃѺºÑ¹·Ö¡àÊÕ§ ÃØè¹ STUDIO THREE

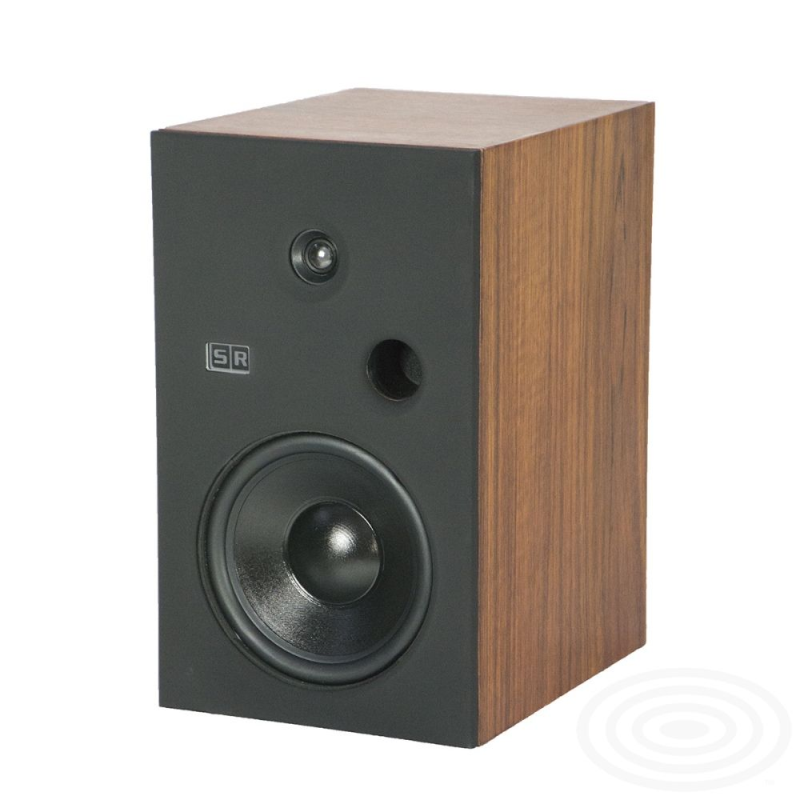

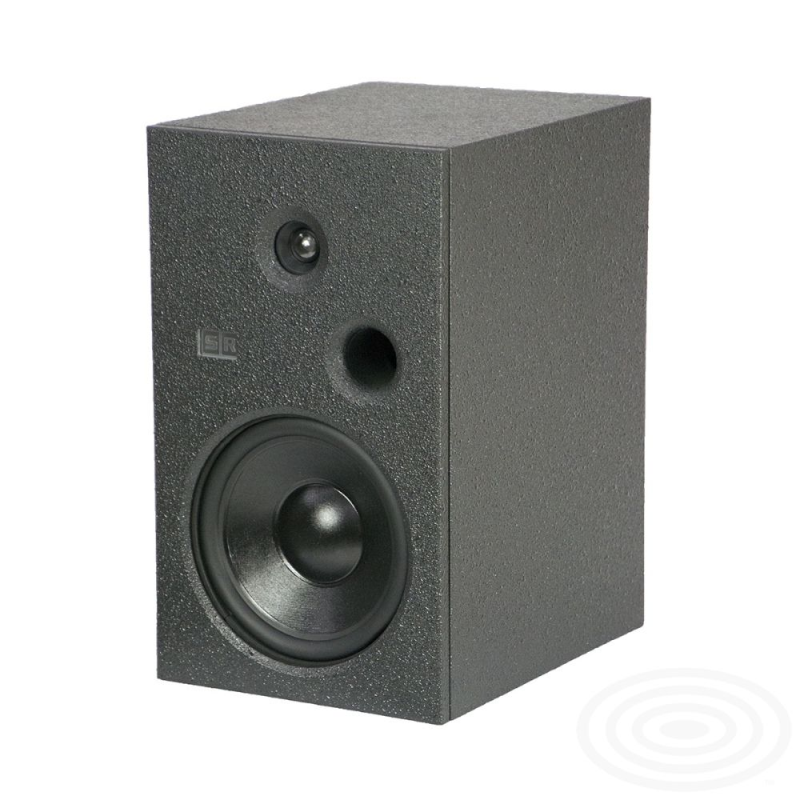

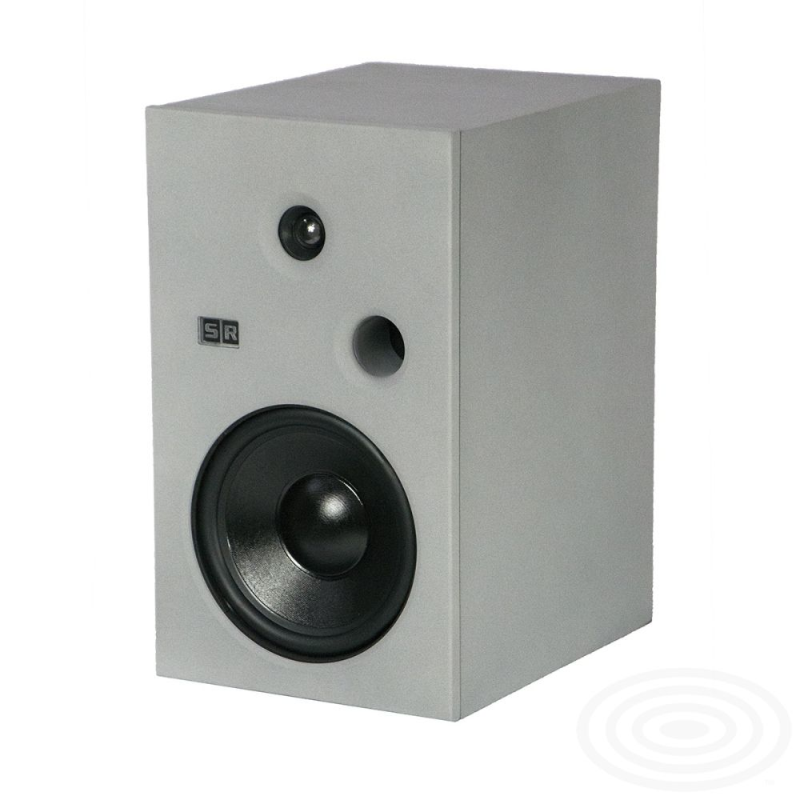

Top-of-the-range STUDIO THREE delivers a solid 130W (260W peak) of power. Equipped with an 8” HiFi woofer and 1” tweeter, it offers a high-quality, full-range monitoring solution.
Specifications STUDIO THREE
Frequency response 50 Hz - 20 kHz (-3 dB)
Sensitivity @ 1W/1m 89.8 dBSPL
SPL max (calc.) 112 dBSPL
Crossover Passive - 18dB/octave
2.2 kHz
LF Transducer 8" HiFi Woofer
Nominal Impedance 8 Ohm,
voice coil diameter 38mm
HF Transducer Dome Tweeter 1" voice coil
aluminium former
Nominal Impedance 8 Ohm.
Power Handling 130W/260W (analogue)
(Continuous/Peak)

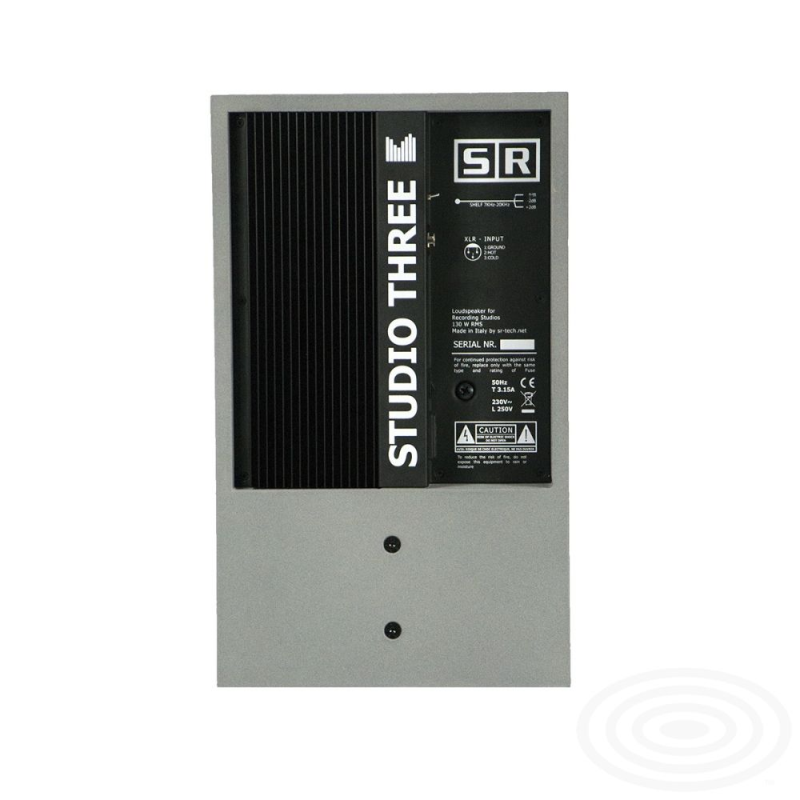

Connection XLR balanced input
Impedance 20 k Ohm. @ 1 kHz
in balance mode
Input sensitivity XLR 0 dBu (0.775 Vrms)
in balance mode
Nominal Impedance 8 Ohm.
(Passive)
Wall mounting Two metric M6 threaded
holes provided
Controls first-order shelf filter:
?2 dB da 7 kHz a 20 kHz
Box 12mm Birch multilayer wood
Two way Bass Reflex
with one flared end
Weight Kg 11
Dimensions (LxDxH) 247x316x414 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
