µÙéÅÓ⾧Á͹ÔàµÍÃìÊÓËÃѺºÑ¹·Ö¡àÊÕ§ SR Technology ÃØè¹ STUDIO ONE
ÂÕèËéÍ: SR Technology ÃËÑÊ: SRS01
µÙéÅÓ⾧Á͹ÔàµÍÃìÊÓËÃѺºÑ¹·Ö¡àÊÕ§ SR Technology ÃØè¹ STUDIO ONE

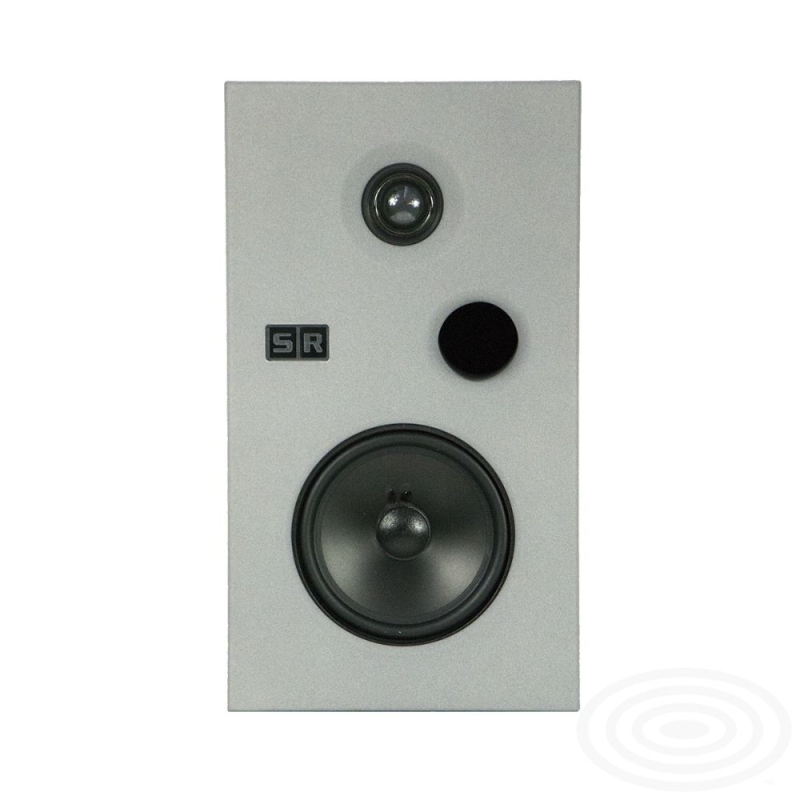

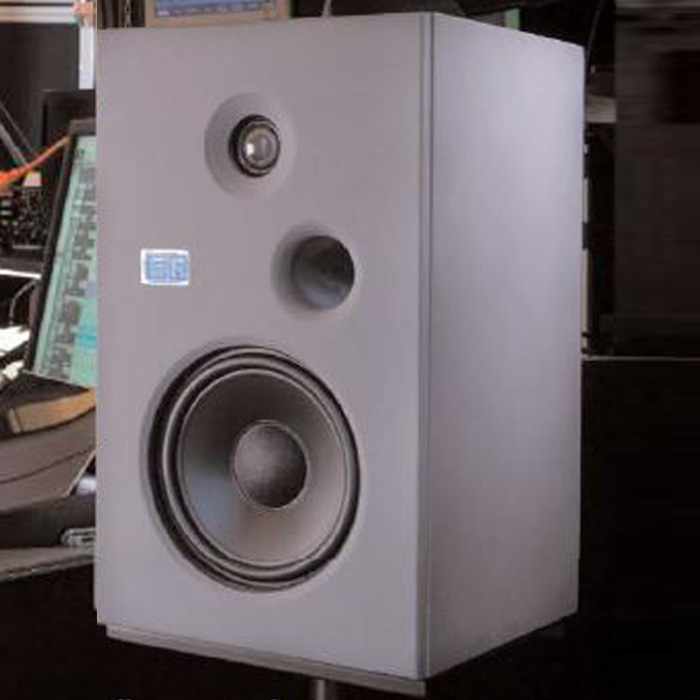

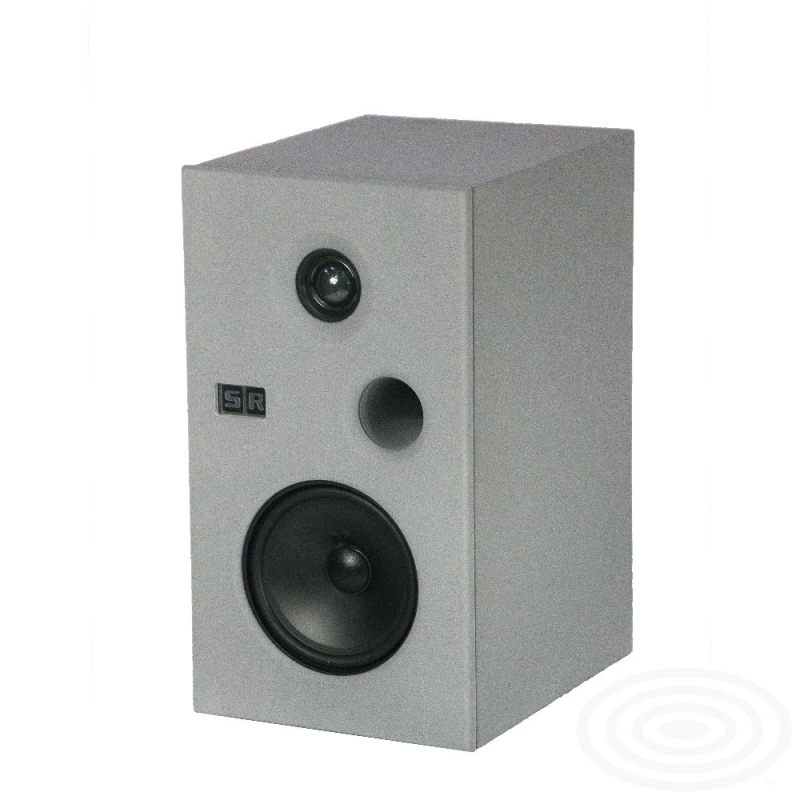

The compact STUDIO ONE has a 5” professional woofer and 1” dome tweeter. Offering 30W of power (100W peak) it is ideal for smaller working spaces and projects.
Specifications STUDIO ONE
Frequency response 60 Hz - 22 kHz (-3 dB)
Sensitivity @ 1W/1m 89.4 dBSPL
SPL max (calc.) 104 dBSPL
Crossover Passive - 18dB/octave
3 kHz
LF Transducer 5" Professional Woofer
Nominal Impedance 8 Ohm.
voice coil diameter 25mm
HF Transducer Dome Tweeter 1" voice coil
aluminium former
Neodymium magnet circuit
Nominal Impedance 8 Ohm.
Power Handling 30W/100W (analogue)
(Continuous/Peak)

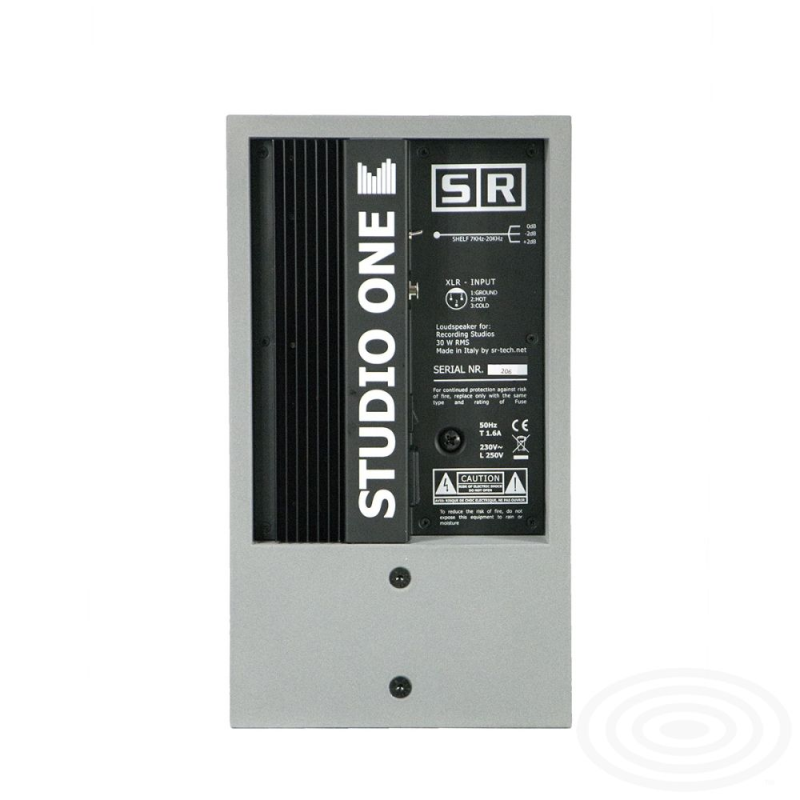

Connection XLR balanced input
Impedance 20 k Ohm. @ 1 kHz
in balance mode
Input sensitivity XLR 0 dBu (0.775 Vrms)
in balance mode
Nominal Impedance 8 Ohm.
(Passive)
Wall mounting Two metric M6 threaded
holes provided
Controls first-order shelf filter:
?2 dB da 7 kHz a 20 kHz
Box 12mm Birch multilayer wood
Two way Bass Reflex
with one flared end
Weight Kg 6
Dimensions (LxDxH) 185x232x334 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
