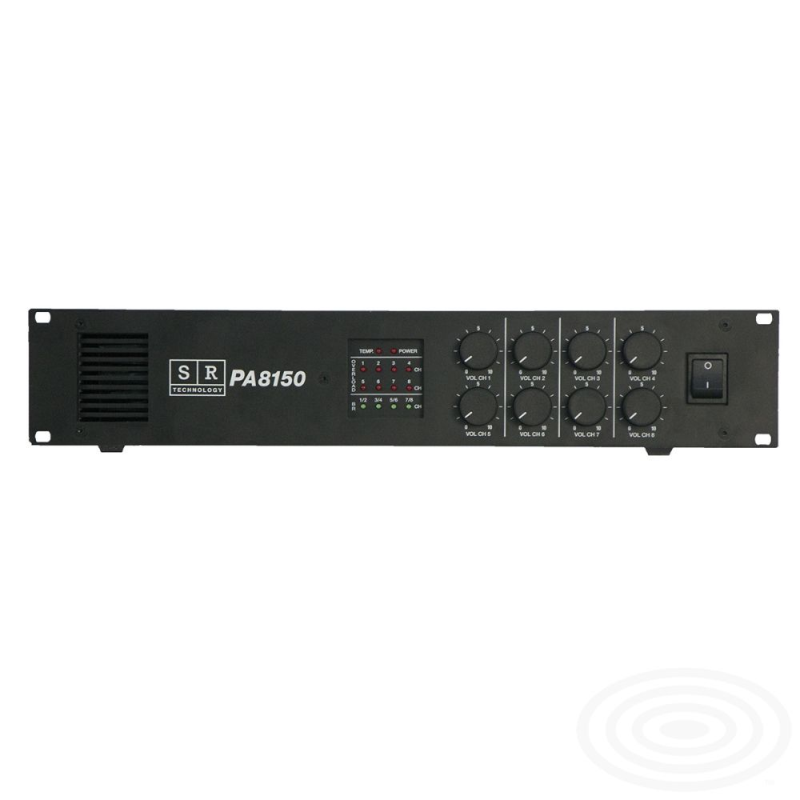

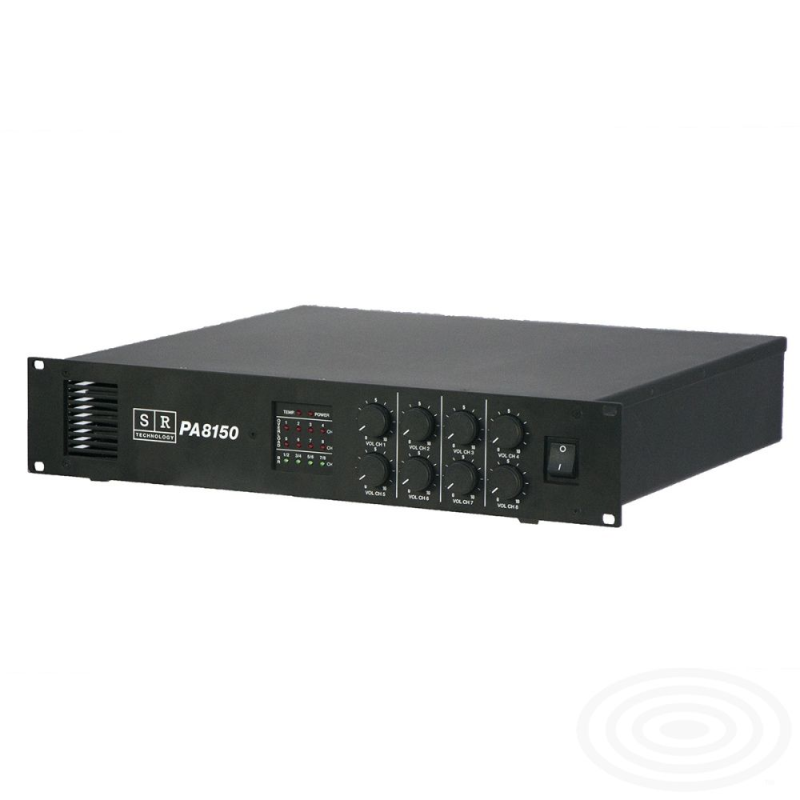

à¾ÒàÇÍÃìáÍÁ»ì PA 8150 by SR Technoogy
Two rack units with balanced XLR inputs, mono / stereo and input link switches. Hi-Fi terminal outputs. Designed to be used in stereo, 4 channels 2x150 Watts 4 ohms, mono 8 channels 150 Watt 4 ohms and bridge 4 channels 300 Watt 8 ohms.
Output power 4 ohm 8 x 150 W
Output power 8 ohm 8 x 100 W
Output power Bridge
8 ohm 4 x 300 W
THD 0.1% at 140W RMS - 4 ohm
Slew rate 20 Volts per microsecond
Frequency response 20Hz-50kHz
at 10 W RMS
Sensitivity 1V RMS - 0dB
Input Impedance 22 Kohm
S/N ratio 90dB
Protections Output DC voltage,
short circuit, temperature

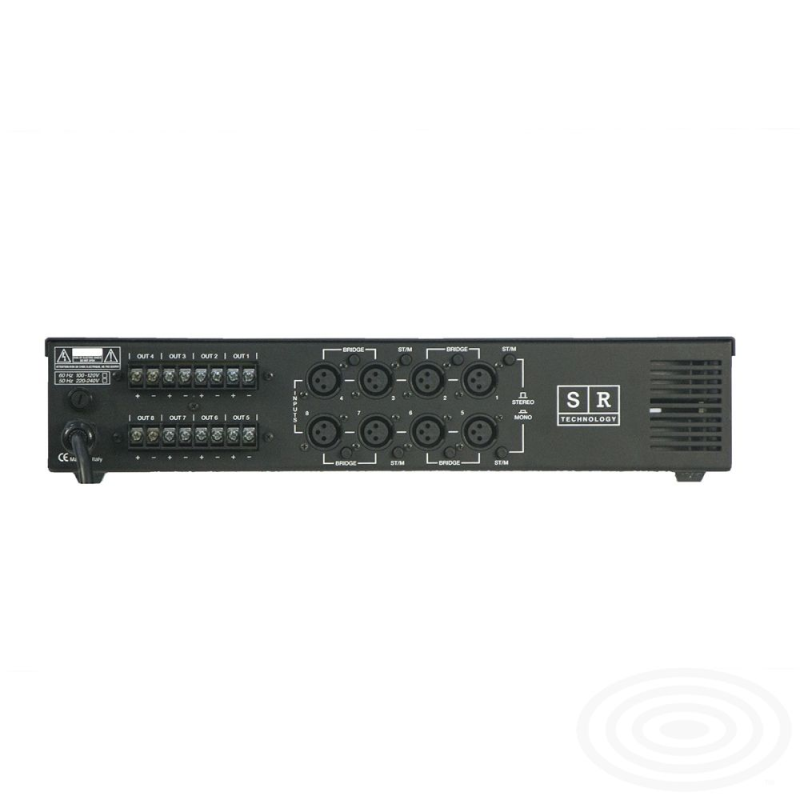

Inputs 8 x XLR balanced
Outputs 8 x HiFi Terminals
Controls 8 x Volume
Weight Kg 18
Dimensions 2 unit rack 19" x 38cm
|
|
|
|
|
|
|
|
|
|
|
