ªØ´ÅÓ⾧áͤ·Õ¿¾ÕàÍ Schertler ÃØè¹ ELYPS 1000 Çѵµì ÊÕ ANTHRACITE
ÂÕèËéÍ: Schertler ÃËÑÊ: SPAE1000A
ªØ´ÅÓ⾧áͤ·Õ¿¾ÕàÍ Schertler ÃØè¹ ELYPS 1000 Çѵµì ÊÕ ANTHRACITE

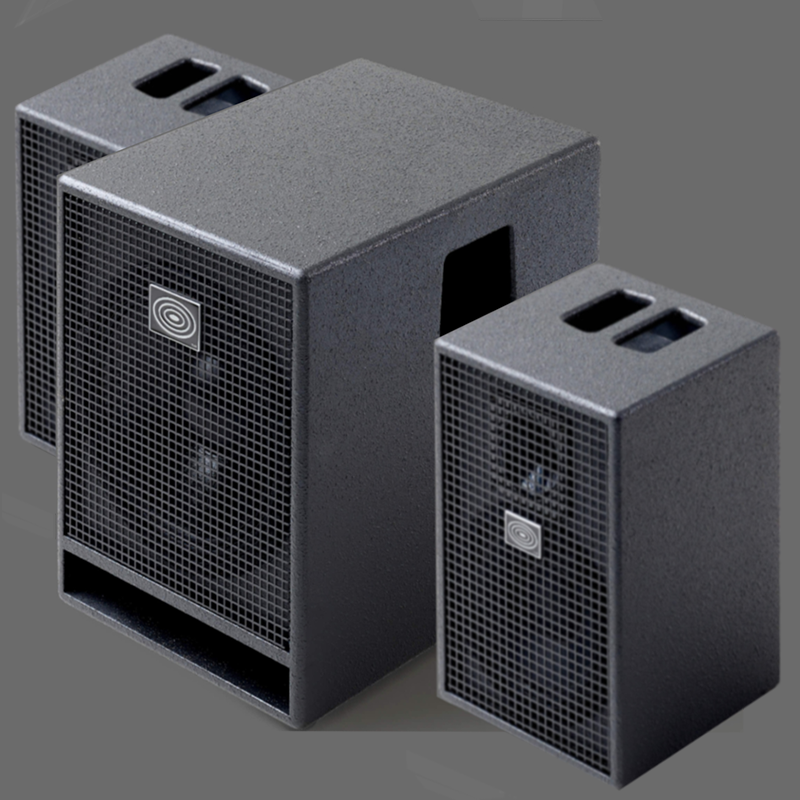

ELYPS 1000 is a 1000W (500+250+250) analog amplification system that consists of a compact active subwoofer AB12 and two passive satellites PT8. The system has been engineered for professional use. The subwoofer is constructed using BJT technology, incorporating a linear power supply for excellent bass response and efficient stereo effect. Sub levels can be adjusted from -7dB to +2dB. Each satellite contains a passive crossover featuring a custom coil.
Easy to transport and set up in live performance situations, ELYPS 1000 is ideal for use with acoustic instruments and in jazz or DJ sets. It's a highly-efficient compact PA system for use in small to medium sized venues such as piano bars, gyms, conference rooms, ballroom and theaters.
The Elyps system is available in a choice of wood or anthracite finishes.

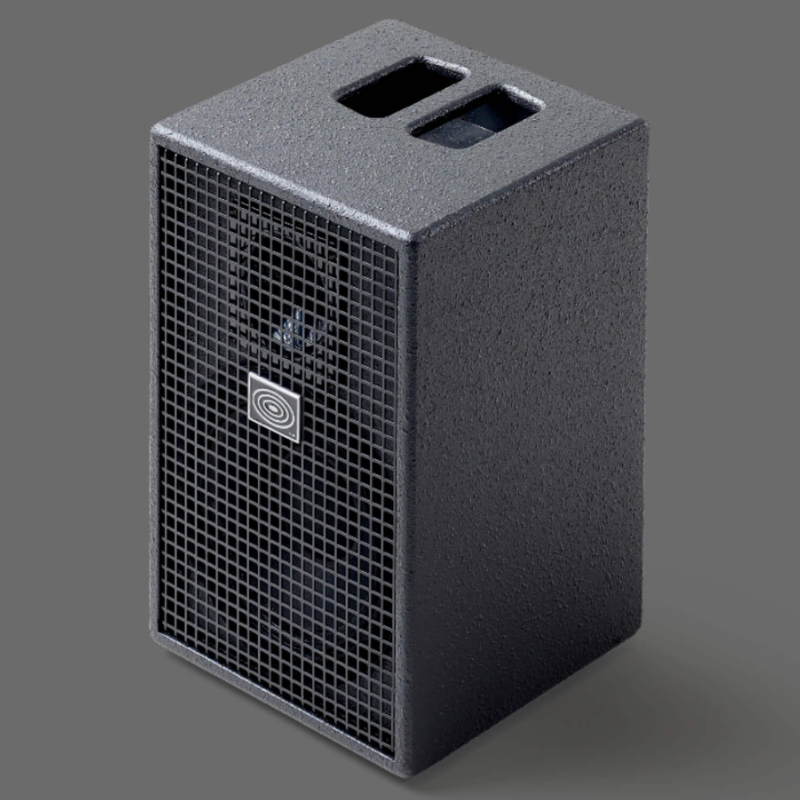

PT8
Weight : 7 kg (each)
Dimensions (LxDxH) : 24 x 24 x 38 cm (each)
Frequency Response (+/-3dB) : 150 to 20 kHz
Sensitivity (1W/1m) 1 kHz : n.a.
SPL Max : 118 dB
Speakers : 1 inch driver + 8 inch woofer (each)
Crossover : Passive - 18 dB/octave
Crossover freq. Cut : n.a.
Box constructionr : 12 mm birch BB laminated
Input connector : Speakon power input
Input sensitivity : n.a.
Input impedance : passive 4 Ohm
Output connector : n.a.
Controls : n.a.
Power : 250 W Pure analog power (each)
Stand mounting : Flange mount 36 mm, h=102 mm on bottom
Available versions : Light wood and anthracit

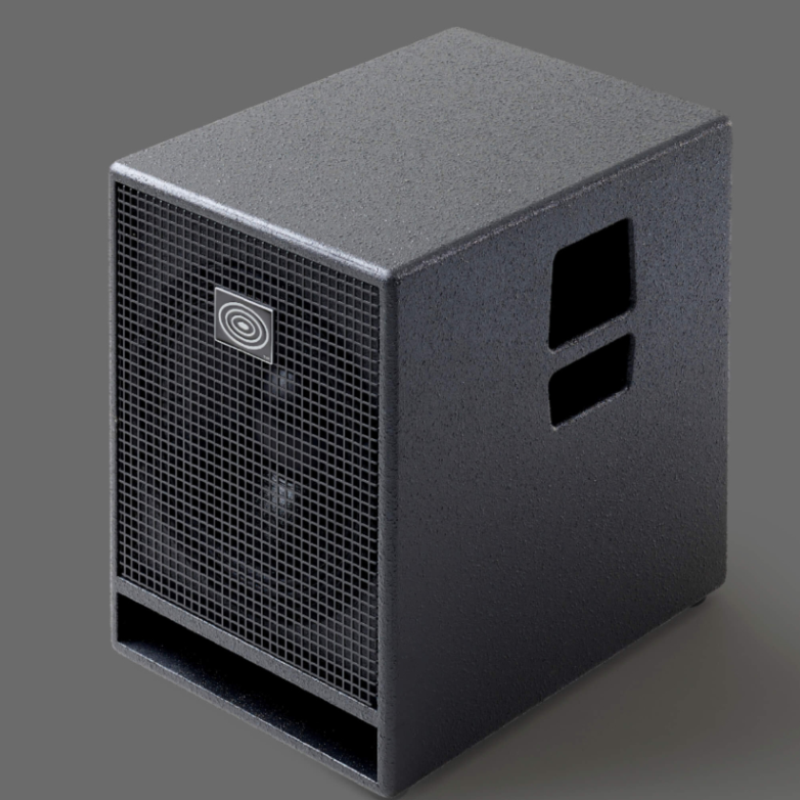

AB12
Weight : 24 kg
Dimensions (LxDxH) : 36 x 49.5 x 49 cm
Frequency Response (+/-3dB) : 45 to 150 Hz
Sensitivity (1W/1m) 1 kHz : n.a.
SPL Max : 121 dB
Speakers : 12 inch woofer
Crossover : Active - 24 dB/octave
Crossover freq. Cut : 150 Hz
Box constructionr : 18 mm birch BB laminated
Input connector : XLR
Input sensitivity : 0 dBu
Input impedance : 10 k Ohm
Output connector : Speakon power output, XLR balanced parallel out
Controls : Volume + ground lift + mono/stereo
Power : 500 W Pure analog power
Stand mounting : Flange mount 36 mm, h=102 mm on top
Available versions : Light wood and anthracite
|
|
|
|
|
|
