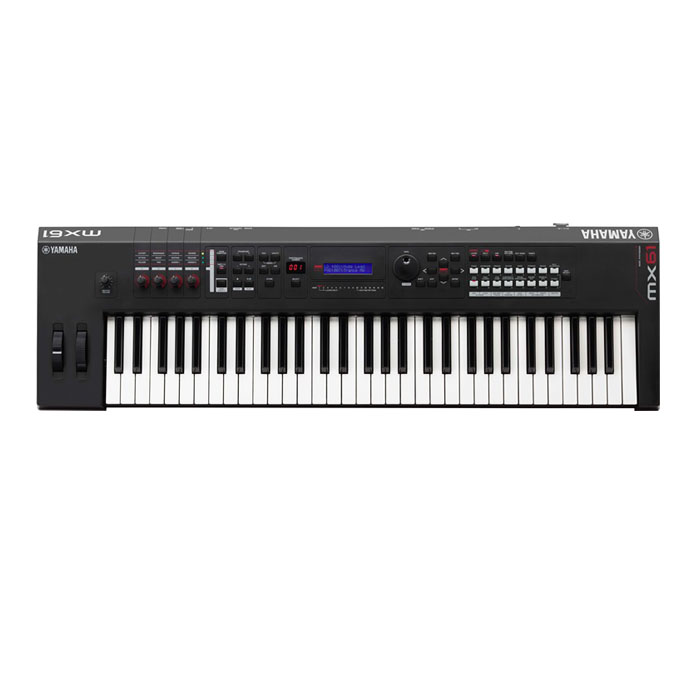

¤ÕÂìºÍôìẺ¾¡¾Ò «Ô¹¸Ôä«à«ÍÃì ÂÒÁÒÎèÒ ÃØè¹ MX61
ÂÕèËéÍ: YAMAHA ÃËÑÊ: SYNMX61
¤ÕÂìºÍôìẺ¾¡¾Ò «Ô¹¸Ôä«à«ÍÃì ÂÒÁÒÎèÒ ÃØè¹ MX61
¢éÍÁÙŨÓà¾ÒÐ
Size/Weight
Dimensions Width 984 mm
Height 112 mm
Depth 299 mm
Weight Weight 4.8kg
Control Interface
Keyboard Number of Keys 61
Initial Touch Yes
Tone generator
Tone Generator AWM2
Maximum Polyphony 128 notes
Multi Timbral Capacity 16 parts (Internal)
Wave Approx.166 MB (when converted to 16-bit linear format)
Voices Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits
Performance User: 128 (16 parts)
Effects Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands)
Sequencer
Tempo (BPM) 5 – 300
Songs 27 Demo Songs
Patterns 208 Patterns
Arpeggio 999 types
Sequence formats SMF Format 0 (playback only)
Other
Sequence Software compatible with the Remote Control function For Windows?: Cubase 6 or later, SONAR X1 ProducerFor Mac?: Cubase 6 or later, Logic Pro 9, Digital Performer 7 *Functions to be controlled differ depending on the software
Controllers Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
Display 3 digit LED + 20 x 2 line character LCD (backlit)
Connectors OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN
Power Supply 9 W
Accessories AC adaptor (PA-150 or an equivalent recommended by Yamaha), Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), DVD-ROM x 1 (containing DAW software)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
