ตัวขยายเสียงสำหรับดับเบิลเบส Schertler STAT B PRO

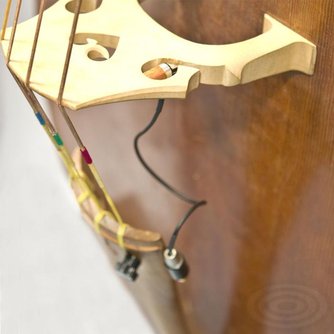

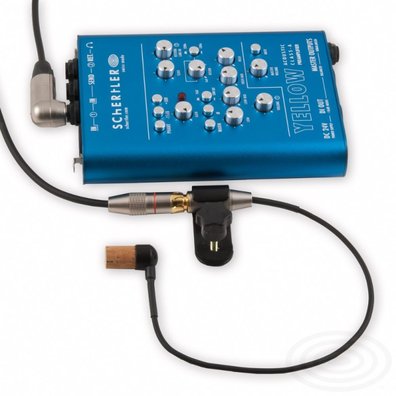

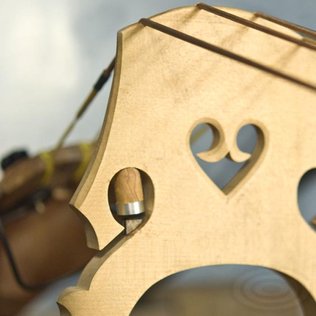

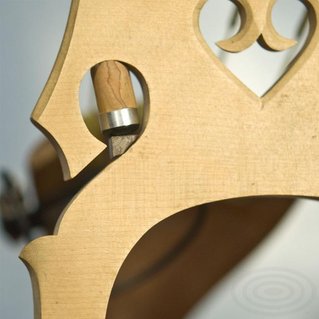

ตัวขยายเสียงสำหรับดับเบิลเบส Schertler STAT B PRO The STAT Series of contact microphones has been specially designed to bring out the best sound qualities of bowed stringed instruments in louder musical environments, or in performance situations involving high levels of amplification. Stephan Schertler’s original bridge-mounted STAT-B is a simple system that effectively reproduces the complex tone of the double bass and also works with any bass amplifier. STAT-B is remarkable for its high resistance to feedback, making it an ideal system for amplified rock, jazz or fusion performances. STAT-B PRO includes the pickup, putty, cable and Schertler’s YELLOW SINGLE preamp with regulated AC power supply. The preamp enables players to control a range of parameters including gain, EQ and resonance. Technical Specifications Stat-B Specs: Nominal impedance 1.6 Kohm Frequency Response 20 Hz to 12 kHz Dynamic range 75 dB Sensitivity (on instrument) ca. -25 dB Temperature range -10? C to +50? C Contacts Gold plated Connection Chinch (RCA) to 1/4 jack Yellow Single Specs : Weight 0.32 kg (0.68lb) Dimensions 15x10x3.8cm (5.9x4.25x1.49 in) Frequency Response 10 Hz to 25 kHz (+/- 3dB) Construction Anodized aluminium box Mic Input MIC IN: XLR balanced Sensitivity: -56 dB Impedance: 4.7 Kohm LINE IN: 1/4 Jack Sensitivity: -52 dB Impedance: 3 Kohm with 10V on Impedance: 200 Kohm with 10V off RETURN/LINE input 1/4 stereo balanced Jack Sensitivity: -30 dB impedance 22 Kohm EQ 4 band EQ + adjustable notch filter warm and low cut MASTER OUTPUTS XLR balanced, output level +20 dBu Impedance 100 ohm 1/4 Jack unbalanced, output level +14 dBu Impedance 100 ohm DI output XLR balanced, sensitivity +5 dBu Impedance 100 ohm SEND output XLR balanced, sensitivity +5 dBu Impedance 100 ohm
