ชุดลำโพงแอคทีฟพีเอ Schertler รุ่น ELYPS 600 วัตต์ สี Wood

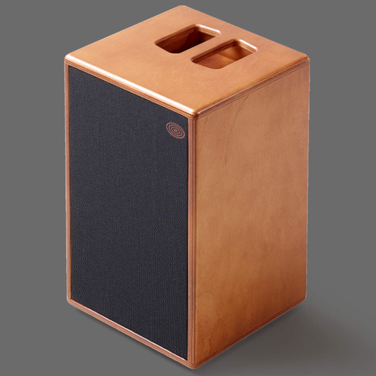

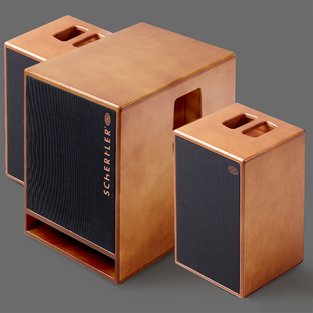

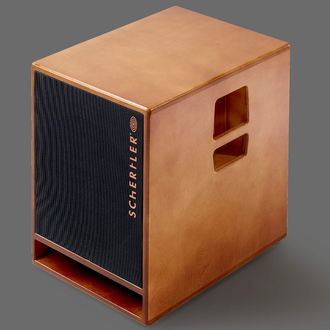

ชุดลำโพงแอคทีฟพีเอ Schertler รุ่น ELYPS 600 วัตต์ สี Wood ELYPS 600 is a 600W (350+125+125) analog amplification system and that consists of a compact active subwoofer AB10 and two passive satellites PT6. It has been engineered for professional use. The subwoofer is constructed using BJT technology, incorporating a linear power supply for excellent bass response and efficient stereo effect. Sub levels can be adjusted from -7dB to +2dB. Each satellite contains a passive crossover featuring a custom coil. Easy to transport and set up in live performance situations, ELYPS 600 is ideal for use with acoustic instruments and in jazz or DJ sets. It''''''''s a highly-efficient compact PA system for use in small to medium sized venues such as piano bars, gyms, conference rooms, ballroom and theaters. ELYPS is available in a choice of wood or anthracite finishes. PT6 Weight : 6 kg (each) Dimensions (LxDxH) : 21 x 24 x 34 cm (each) Frequency Response (+/-3dB) : 150 to 20 kHz Sensitivity (1W/1m) 1 kHz : n.a. SPL Max : 113 dB Speakers : 1 inch driver + 6 inch woofer (each) Crossover : Passive - 18 dB/octave Crossover freq. Cut : n.a. Box constructionr : 12 mm birch BB laminated Input connector : Speakon power input Input sensitivity : n.a. Input impedance : passive 8 Ohm Output connector : n.a. Controls : n.a. Power : 150 W Pure analog power (each) Stand mounting : Flange mount 36 mm, h=102 mm on bottom Available versions : Light wood and anthracite AB10 Weight : 18 kg Dimensions (LxDxH) : 32 x 51 x 49 cm Frequency Response (+/-3dB) : 50 to 150 Hz Sensitivity (1W/1m)1 kHz: n.a. SPL Max : 117 dB Speakers : 10 inch woofer Crossover : Active - 24 dB/octave Crossover freq. Cut : 150 Hz Box constructionr : 18 mm birch BB laminated Input connector : XLR Input sensitivity : 0 dBu Input impedance : 10 k Ohm Output connector : Speakon power output, XLR balanced parallel out Controls : Volume + ground lift + mono/stereo Power : 300 W Pure analog power Stand mounting : Flange mount 36 mm, h=102 mm on top Available versions : Light wood and anthracite
