ชุดลำโพงแอคทีฟพีเอ Schertler รุ่น ELYPS 1000 วัตต์ สี ANTHRACITE

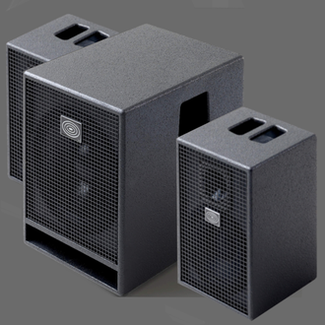

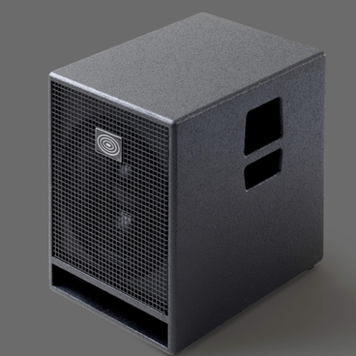

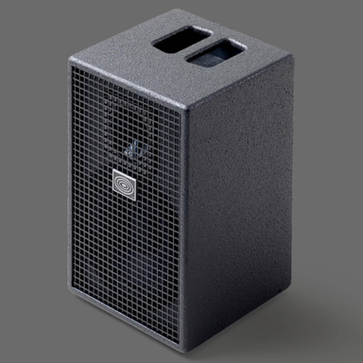

ชุดลำโพงแอคทีฟพีเอ Schertler รุ่น ELYPS 1000 วัตต์ สี ANTHRACITE ELYPS 1000 is a 1000W (500+250+250) analog amplification system that consists of a compact active subwoofer AB12 and two passive satellites PT8. The system has been engineered for professional use. The subwoofer is constructed using BJT technology, incorporating a linear power supply for excellent bass response and efficient stereo effect. Sub levels can be adjusted from -7dB to +2dB. Each satellite contains a passive crossover featuring a custom coil. Easy to transport and set up in live performance situations, ELYPS 1000 is ideal for use with acoustic instruments and in jazz or DJ sets. It''''''''s a highly-efficient compact PA system for use in small to medium sized venues such as piano bars, gyms, conference rooms, ballroom and theaters. The Elyps system is available in a choice of wood or anthracite finishes. PT8 Weight : 7 kg (each) Dimensions (LxDxH) : 24 x 24 x 38 cm (each) Frequency Response (+/-3dB) : 150 to 20 kHz Sensitivity (1W/1m) 1 kHz : n.a. SPL Max : 118 dB Speakers : 1 inch driver + 8 inch woofer (each) Crossover : Passive - 18 dB/octave Crossover freq. Cut : n.a. Box constructionr : 12 mm birch BB laminated Input connector : Speakon power input Input sensitivity : n.a. Input impedance : passive 4 Ohm Output connector : n.a. Controls : n.a. Power : 250 W Pure analog power (each) Stand mounting : Flange mount 36 mm, h=102 mm on bottom Available versions : Light wood and anthracit AB12 Weight : 24 kg Dimensions (LxDxH) : 36 x 49.5 x 49 cm Frequency Response (+/-3dB) : 45 to 150 Hz Sensitivity (1W/1m) 1 kHz : n.a. SPL Max : 121 dB Speakers : 12 inch woofer Crossover : Active - 24 dB/octave Crossover freq. Cut : 150 Hz Box constructionr : 18 mm birch BB laminated Input connector : XLR Input sensitivity : 0 dBu Input impedance : 10 k Ohm Output connector : Speakon power output, XLR balanced parallel out Controls : Volume + ground lift + mono/stereo Power : 500 W Pure analog power Stand mounting : Flange mount 36 mm, h=102 mm on top Available versions : Light wood and anthracite
