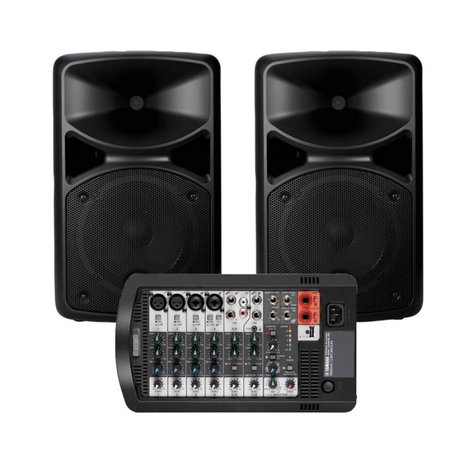

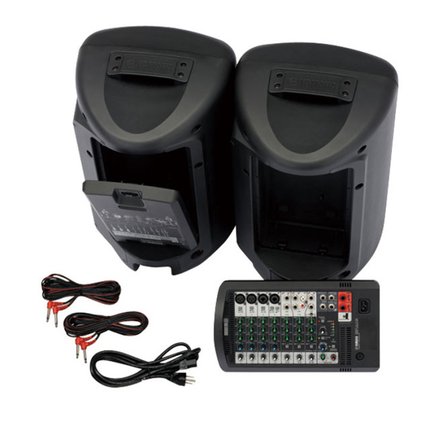

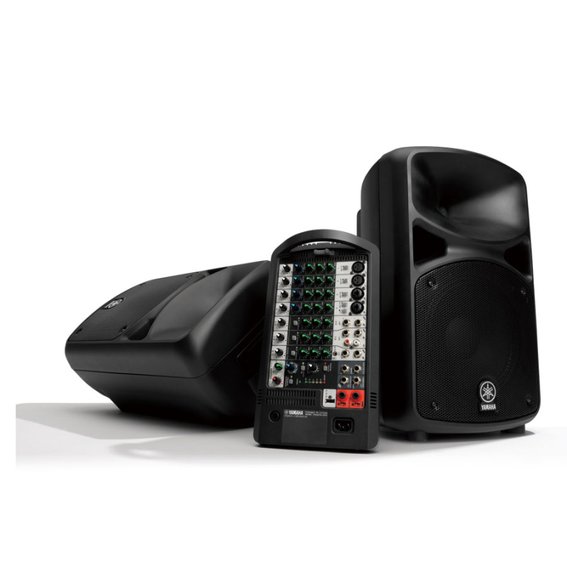

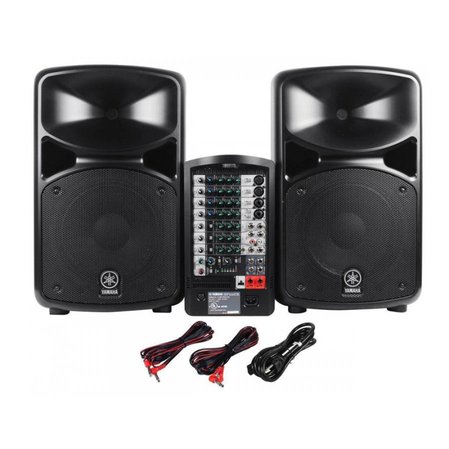

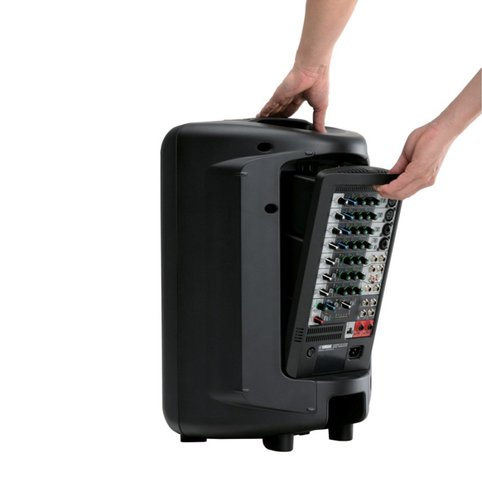

PA System Yamaha STAGEPAS 600i

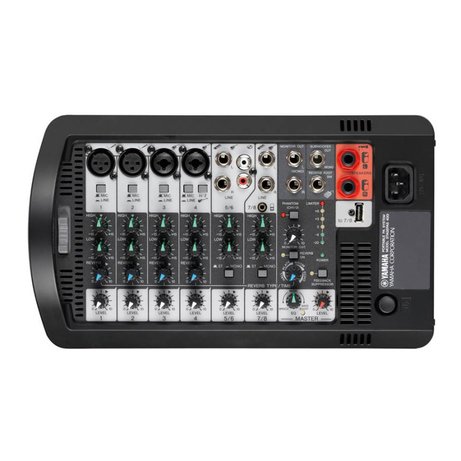

680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, iPod/iPhone USB connection, SPX digital reverbs, an onboard feedback suppressor and versatile EQ. System System Type Powered mixer with 2 passive speakers Maximum SPL (*Maximum SPL) 129dB SPL / speaker Frequency Range (-10 dB) 55Hz - 20kHz Power Consumption 35W (Idle), 100W (1/8 Power) Power Requirements 100V - 240V 50 Hz/60Hz Dimentions (W x H x D) Speaker 335x545x319mm, Mixer 348x197x135mm Net Weight 25.4kg / 56lbs (2 x Speaker 10.8kg + Mixer 3.8kg) Powered Mixer Mixer Mixing channels 10 Analog inputs 4 mono mic/line + 6 mono / 3 stereo line Digital inputs USB Audio IN: iPod/iPhone exclusive Channel EQ 3-band (HIGH Shelving: 8kHz, MID peaking: 2.5kHz, LOW Shelving: 100Hz) Channel functions Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10 Digital effects SPX digital reverb (4 program, parameter control) Output processing Feedback suppressor, 1-Knob Master EQ? Phantom power +30V (CH1, 2) Outputs SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF Control and others Reverb foot switch Built-in Amplifiers Power Rating (Dynamic) 680W (340W + 340W) Power Rating (Continuous) 560W (280W + 280W) Speaker Type Two-way bass-relfex speakers Transducers LF: 10” (25cm) cone, HF: 1.4” (3.56cm) voice coil compression driver Coverage Angle (Horizontal x Vertical) 90? x 60? Floor Monitor Angle 50? Handle 1 x Top Pole socket 34.8-35.2mm pole socket with StageLok? Accessories Included Accessories Cover panel, Power cord (2m), 2xSpeaker cables (6m), 12xNon-skid pads Optional Accessories Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
