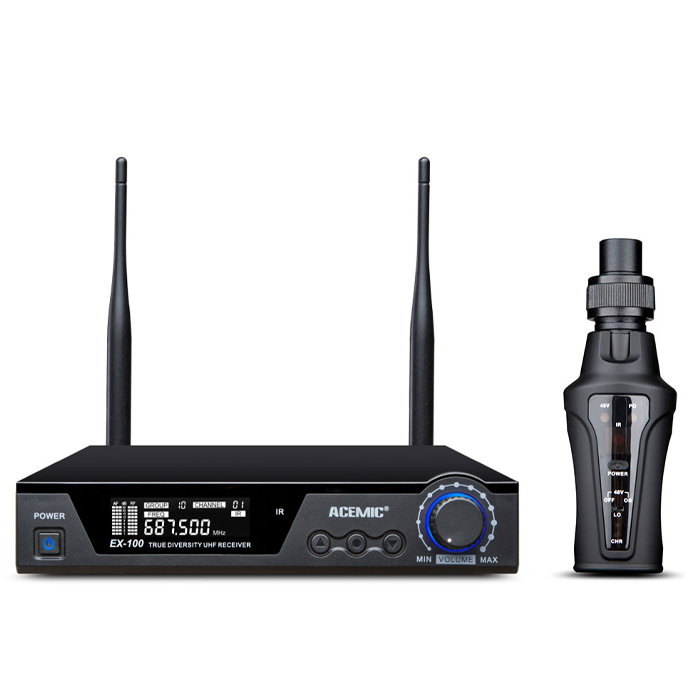

ชุดแปลงสัญญาณไมโครโฟนไร้สาย รุ่น EX-100/TR-10

ชุดแปลงสัญญาณไมโครโฟนไร้สายสำหรับมืออาชีพ รุ่น EX-100/TR-10 UHF Band plug-on transmission system for all condenser and dynamic microphones PLL Synthesized, pre-set 100 selectable frequencies True diveristy guarantee maximum range without drop-out signals IR synch downloading the frequency from receiver LCD display shows the RF level, AF level, channel and frequency Range up to 100 meters EIA standard 1/2U rack-mountable metal chassis Transmitter powerd by lithium battery Designed for professional stage and performance applications SPECIFICATION Comprehensive Performance Frequency Range: 600-937MHz Modulation Mode: FM Dynamic Range: 100dB Frequency Response: 60Hz-17KHz?3dB Total Harmonic Distortion: 0.5% at 1KHz Signal/Noise Ratio: ?108dB Receiver Frequency Range: 600-928MHz Receive Sensitivity: -110dBm (sinad ?30dB) Signal/Noise Ratio: 105dB Power Supply: DC12V-18V / 500mA Dimensions:210*170*44mm Audio Output: 1*XLR socket, 1*6.3mm jack socket Transmitter Frequency Range: 600-937MHz RF Power: 10mW Battery Voltage: 3.7V ( Lithium Battery) Power Consumption: 10 hours
