µÙéÅÓ⾧ SR Technology Home Theater ÃØè¹ SCENE ONE
ÂÕèËéÍ: SR Technology ÃËÑÊ: SRC01
µÙéÅÓ⾧ Home Theater ÃØè¹ SCENE ONE

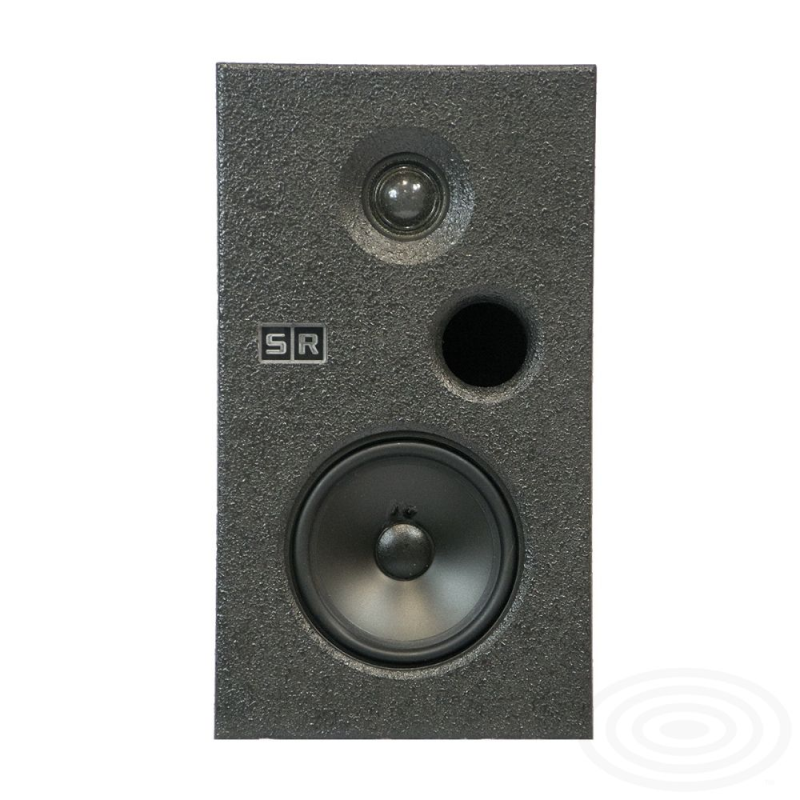

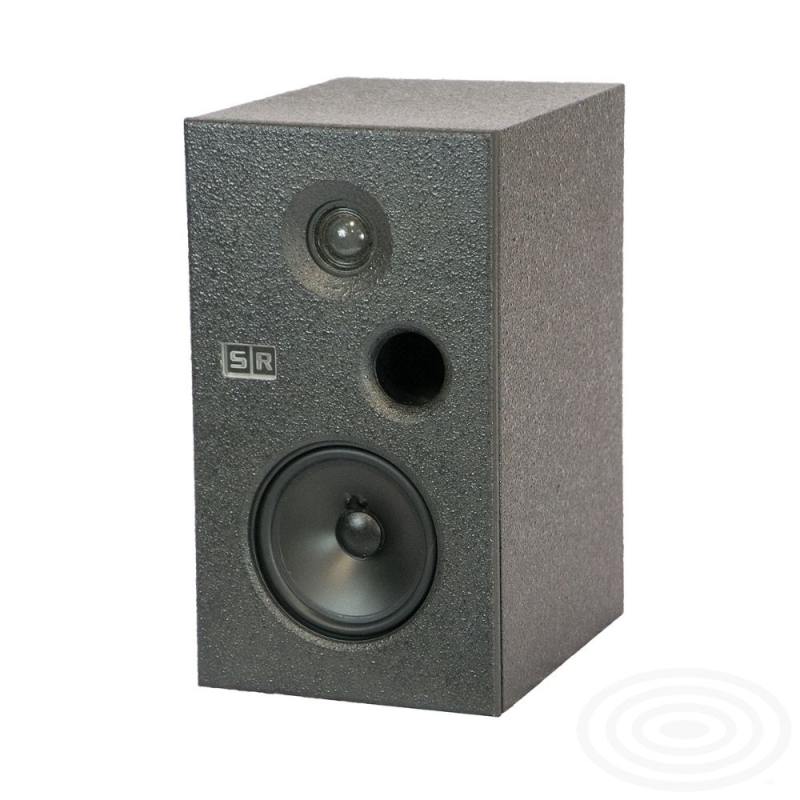

SCENE ONE is a compact 30W loudspeaker equipped with a professional 5” woofer and 1” tweeter. Ideal for background music, it delivers a max SPL of 104dB.
Specifications SCENE ONE
Frequency response 60 Hz - 22 kHz (-3 dB)
Sensitivity @ 1W/1m 88.4 dBSPL
SPL max (calc.) 104 dBSPL
Crossover Passive - 18dB/octave
3 kHz
LF Transducer 5" Professional Woofer
Nominal Impedance 8 ?
Voice coil diameter 25 mm
HF Transducer Dome tweeter 1" voice coil
aluminium former
Neodymium magnet circuit
Nominal Impedance 8 Ohm.
Power Handling 30W/100W (analogue)
(Continuous/Peak)

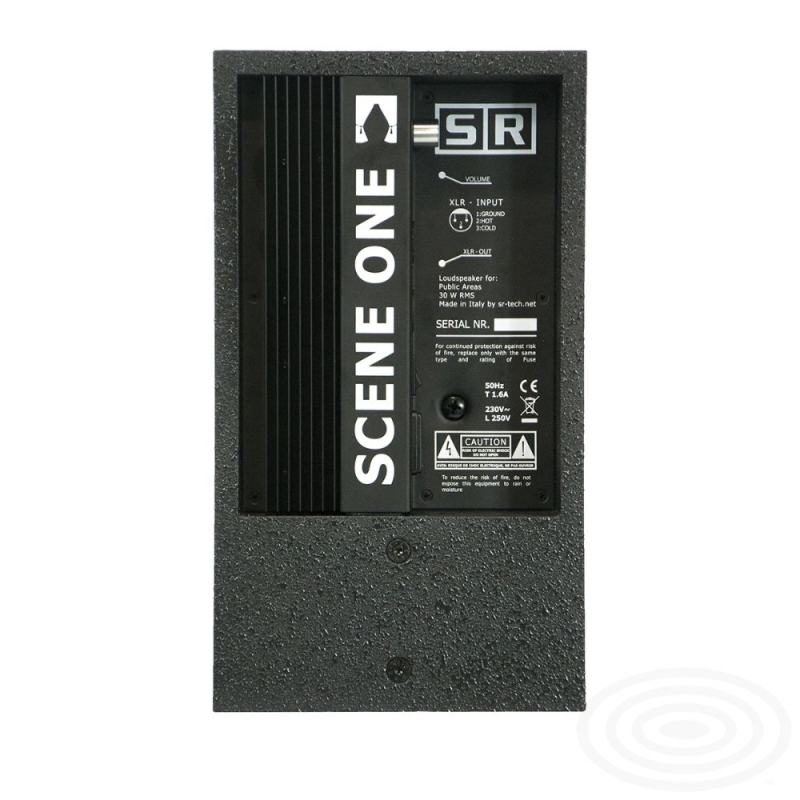

Connection XLR balanced input
XLR balanced link output
Impedance 20 k Ohm. @ 1 kHz
in balance mode
Input sensitivity XLR 0 dBu (0.775 Vrms)
in balance mode
Nominal Impedance 8 Ohm.
(Passive)
Wall mounting Two metric M6 threaded
holes provided
Controls Volume control - ? a 0 dBu
Box 12 mm Birch multilayer wood
|
|
|
|
|
|
|
|
|
|
|
|
|
|
